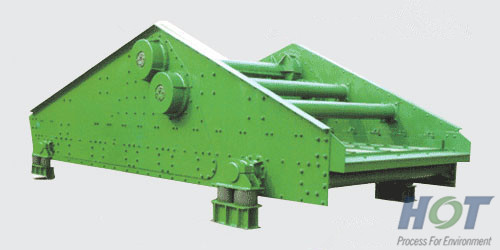

Linear Vibrating Screen

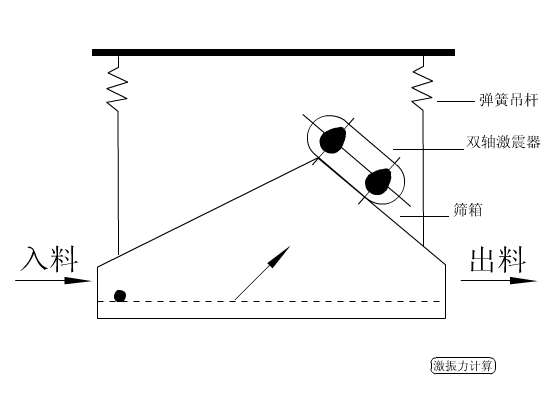

Linear vibration screen uses vibration motor as its vibration source, The material is thrown up on the screen mesh and moving forward in a straight line. The material is fed from the feeder evenly into the screen mesh. After vibration, different screening products can be obtained according to their different size.

Model: ZKX series, ZK series, ZKB series, ZKR series, DZS series

Application

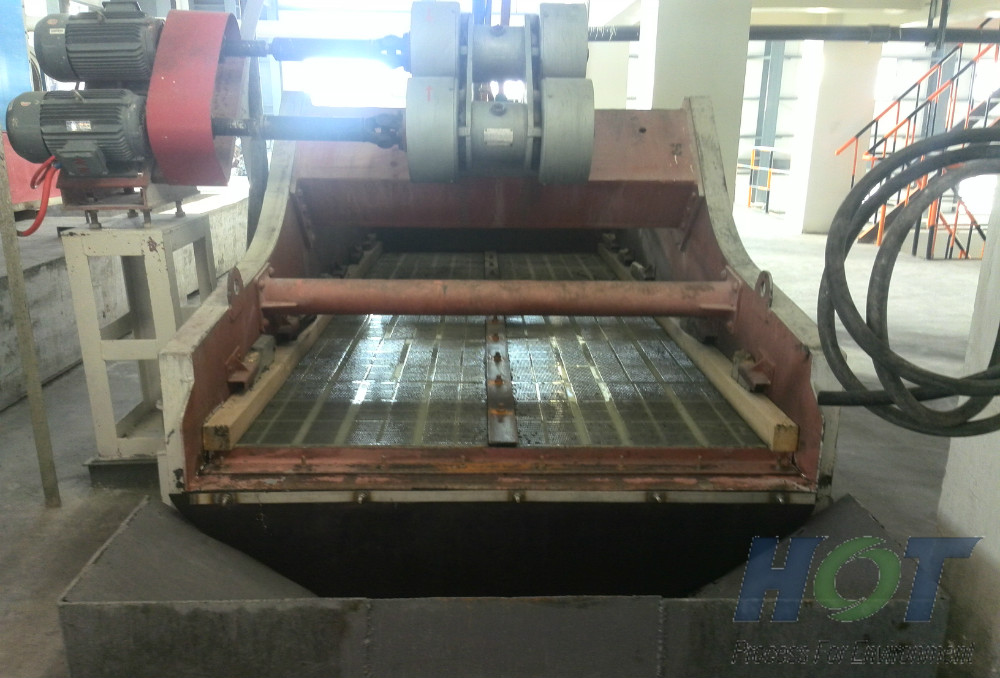

In the CIL plant, liner vibrating screen can be used as a debris-removal screen to remove the sawdust, grass roots and other debris in the overflow slurry of the hydro-cyclone; and it can be used as a separation screen to separate the slurry and the gold-loaded carbon; it can be used as a safety screen to make sure that the tailing slurry has no particle carbon.

Advantage

The linear vibrating screen has the advantages of low energy consumption, high efficiency, simple structure, easy maintenance. The minimum size of the sieve can be below 400 mesh. And it can get up to 7 screening products as required.

What can HOT provide

HOT can provide different types of linear vibrating screen and its mating spare parts. With the help of rich experience and profound technical accumulation, HOT can provide clients with comprehensive technical guidance and perfect after-sales service.

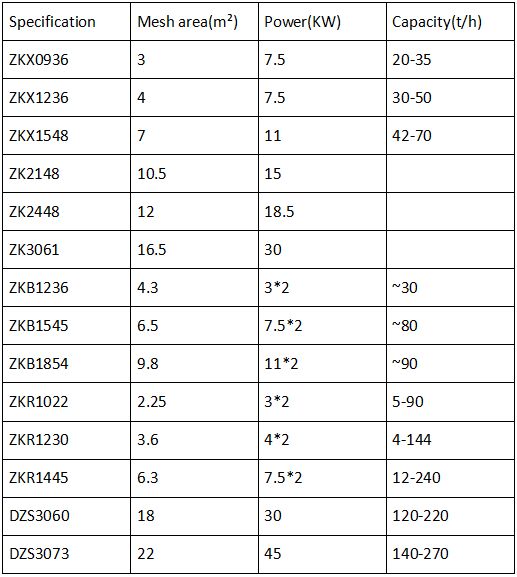

There are many models and specifications of the linear vibrating screen. The upper table contains only part of the data. The specific parameters are closely related to the actual cases.
